R&DQuantum-Powered Clinical Intelligence

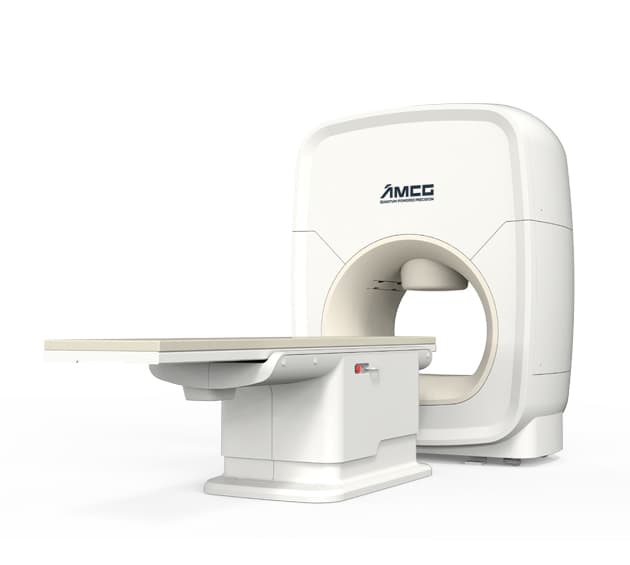

MCG-S
Magnetocardiography system for diagnosis
MFDS approved · US FDA 510(k) cleared
The world's first 96-channel magnetocardiography device.It measures the extremely faint magnetic field produced by the electrophysiological activity of the heart from outside the body,then quantifies myocardial ischemia and electrophysiological abnormalities with AI algorithms.
01
96-channel high-density measurement
Covers the whole heart at once and localizes the lesion in three dimensions.
02
2nd-generation DROS sensor
Our own sensor delivers 10× the signal sensitivity of a 1st-generation DC-SQUID.
03
Helium reliquefaction
Expensive helium is reliquefied and reused, cutting operating cost substantially.
04
No radiation, no contrast
A non-invasive, non-pharmacological test that carries no burden for repeat or long-term follow-up.
| Channels | 96 |
|---|---|
| Sensor | 2nd-generation DROS SQUID |
| Test time | About 5 minutes |
| Sensitivity / specificity | Over 90% |
| Cooling | Helium reliquefaction loop |
| Approvals | MFDS, US FDA 510(k) |
